HANDLING
Maximum throughput coupled with gentle material handling. We develop individualized components and complete turnkey solutions, focusing heavily on cost-efficiency and technical finesse.
VIRO-BOT
The VIRO-BOT is an advanced automated system designed for de-stacking, sorting sheet stacks, and forming bales from wrapped bundles. A single VIRO-BOT system can efficiently manage de-stacking, residual sheet handling, and bale forming (palletizing).
COMPONENTS
- ABB Handling Robot, equipped with a specialized gripper clamping tool and an integrated anti-crash system.
- Heavy-Duty Socket, engineered for ABB Robot assembly.
- Control panel with a high-resolution touch interface and remote control capabilities.
- Custom software for fully automatic operation.

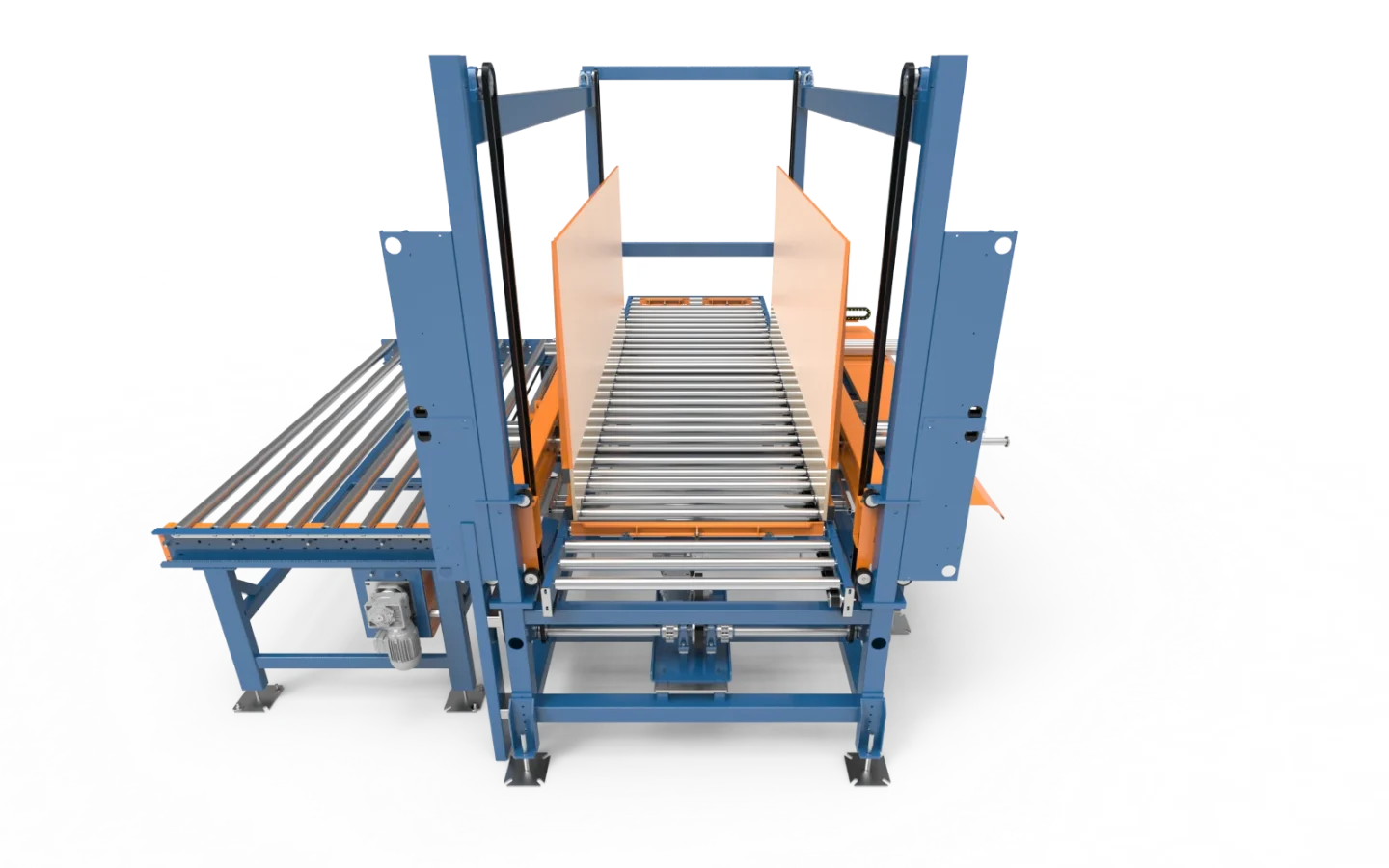

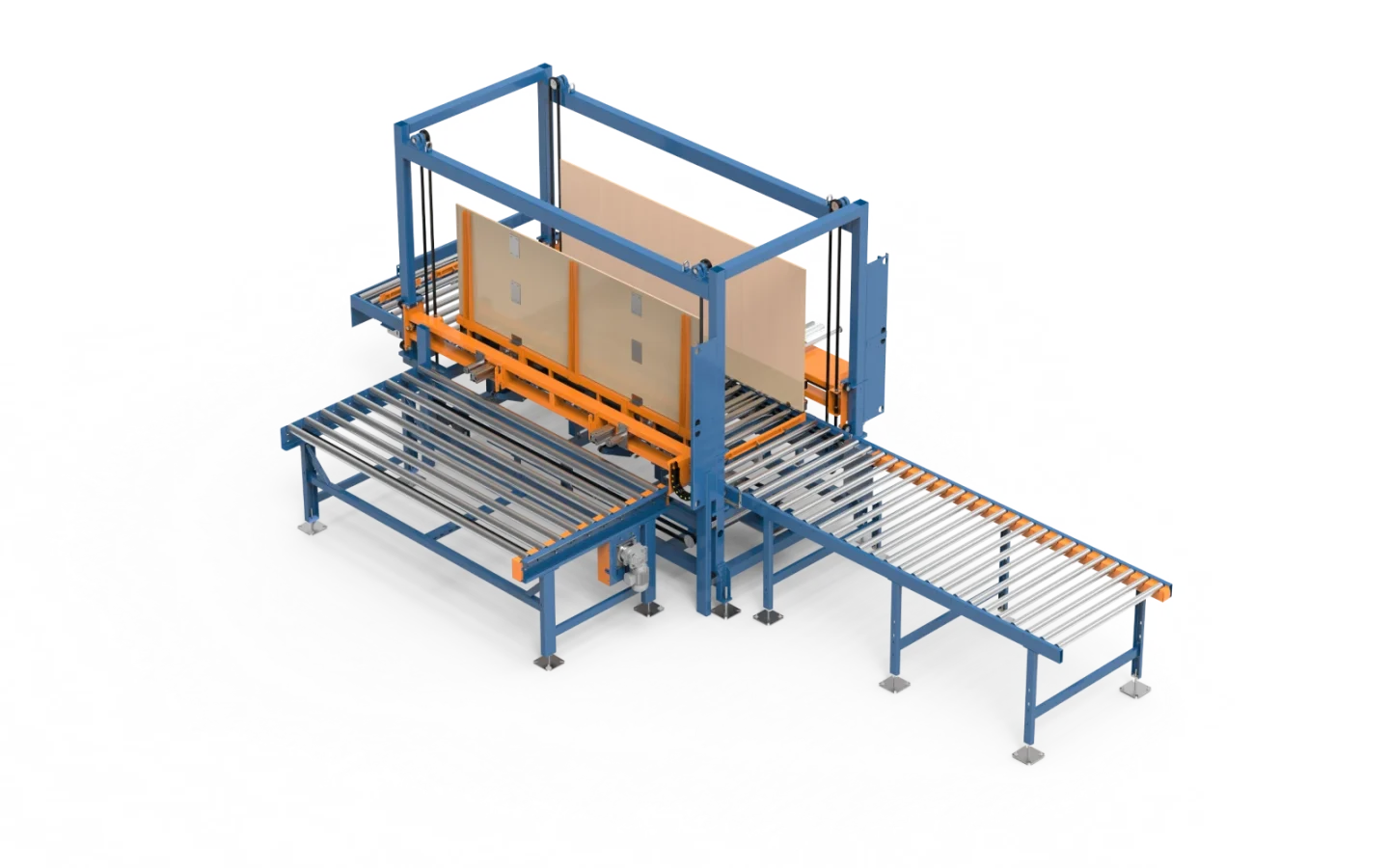

De-stacking System Type SU-1500
This system provides automatic de-stacking after the cutting line, transitioning material from block height to individual bundle height.
TECHNICAL SPECIFICATIONS
- Heavy-duty fork clamp lifting mechanism.
- Maximum length of gripper is 2.000 mm.
- Optimized for a single thickness type per cycle.
- Handles a maximum width of 1.000 mm.
- Includes all entry/exit roller drives and integrated safety fences.

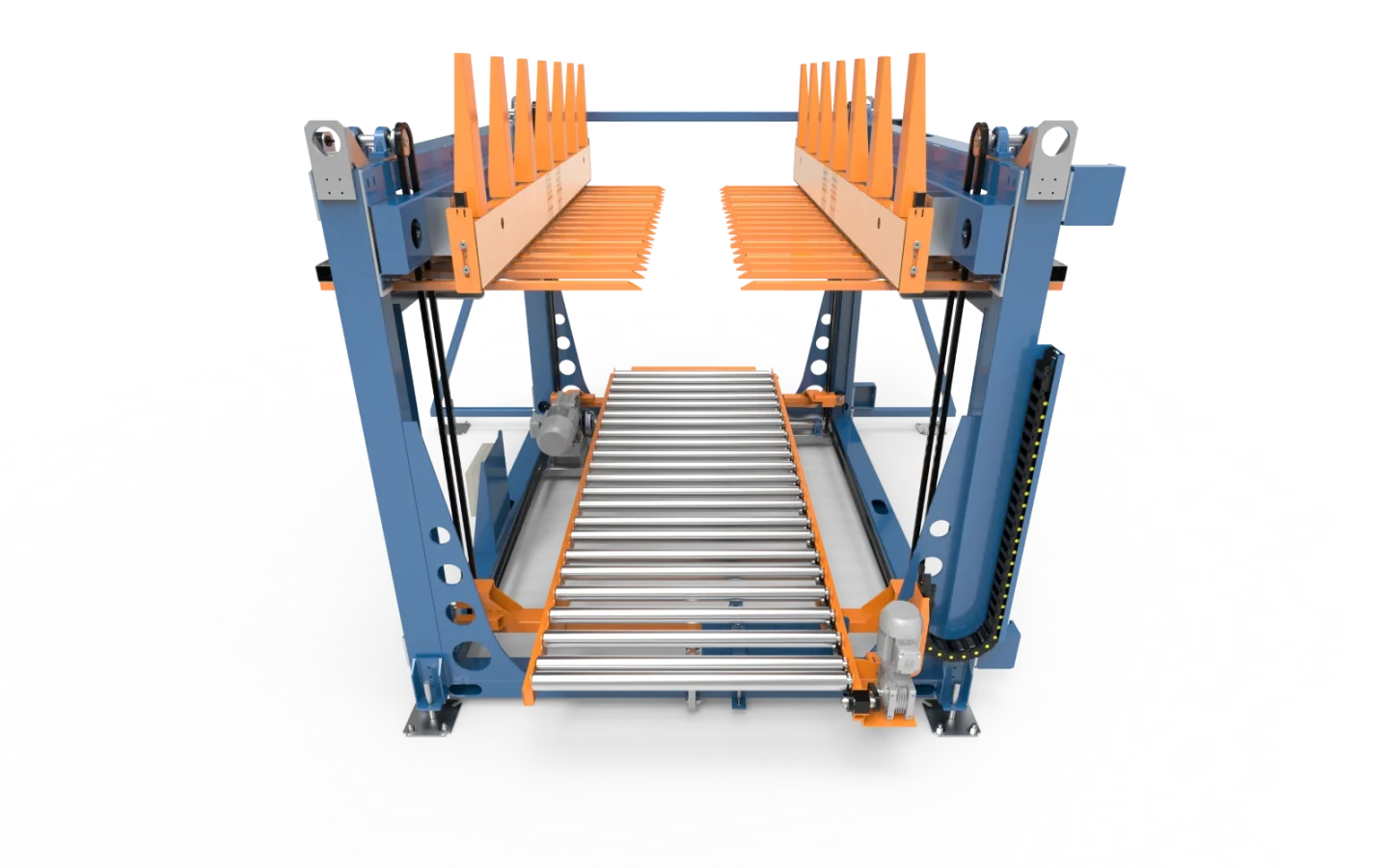

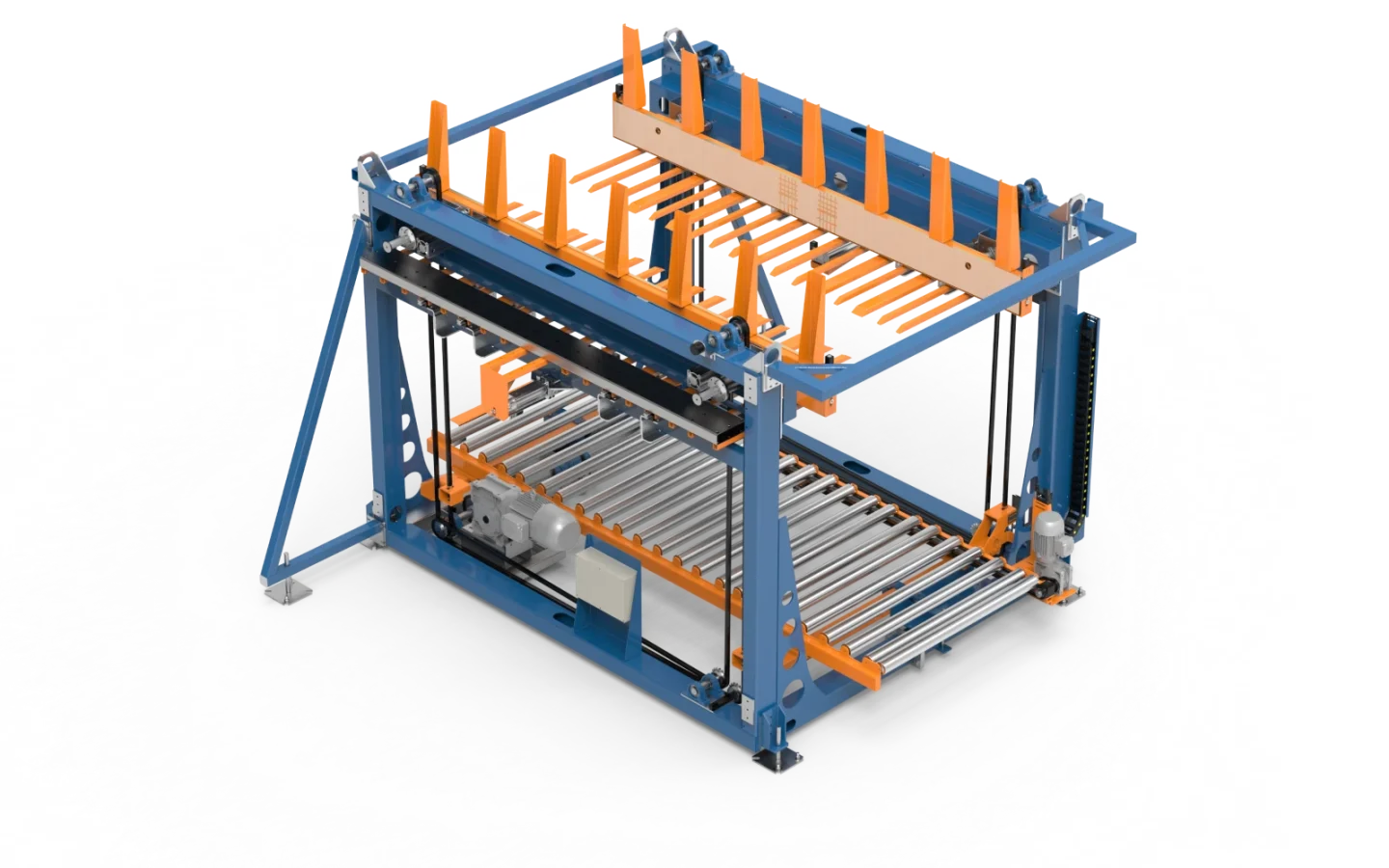

Palletizing System Type PA-1500
The PA-1500 specializes in the automatic stacking (palletizing) of wrapped bundles onto pallets, ensuring stability and precision.
TECHNICAL SPECIFICATIONS
- Heavy-duty fork clamp lifter.
- Includes fixed safety fences and synchronized entry/exit roller drives for smooth material flow.
