RECYCLING SYTEM
Optimize your material recovery with a comprehensive recycling plant system.

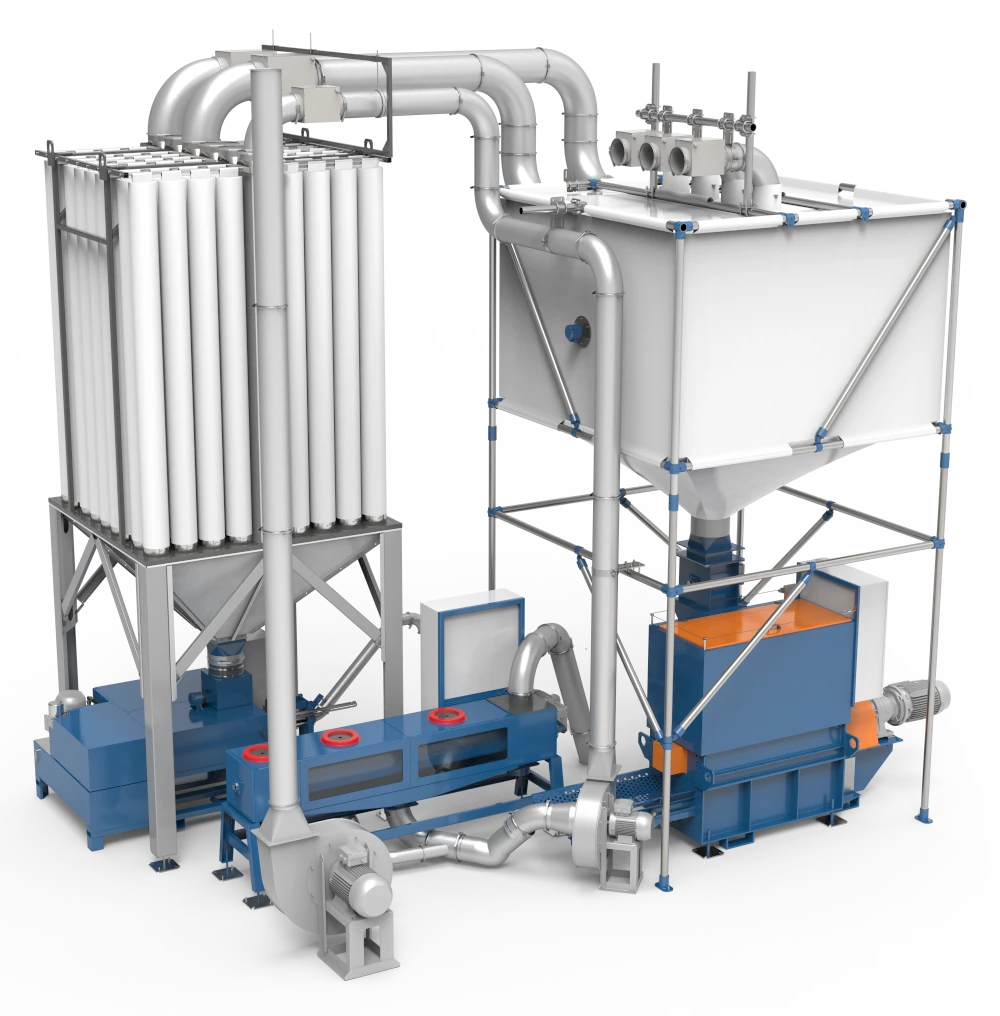

TYPICAL CONFIGURATION
- Collecting Silo for Coarse Regrind
- Metering Airlock Cell Wheel
- VBM 1350 granulator
- Fine regrind transport blower
- Integrated dedusting system
- Transport blower for clean regrind to silo
- Vacuum suction blower for dust transport
- Collecting silo for dust and contaminants
- Dust compactor

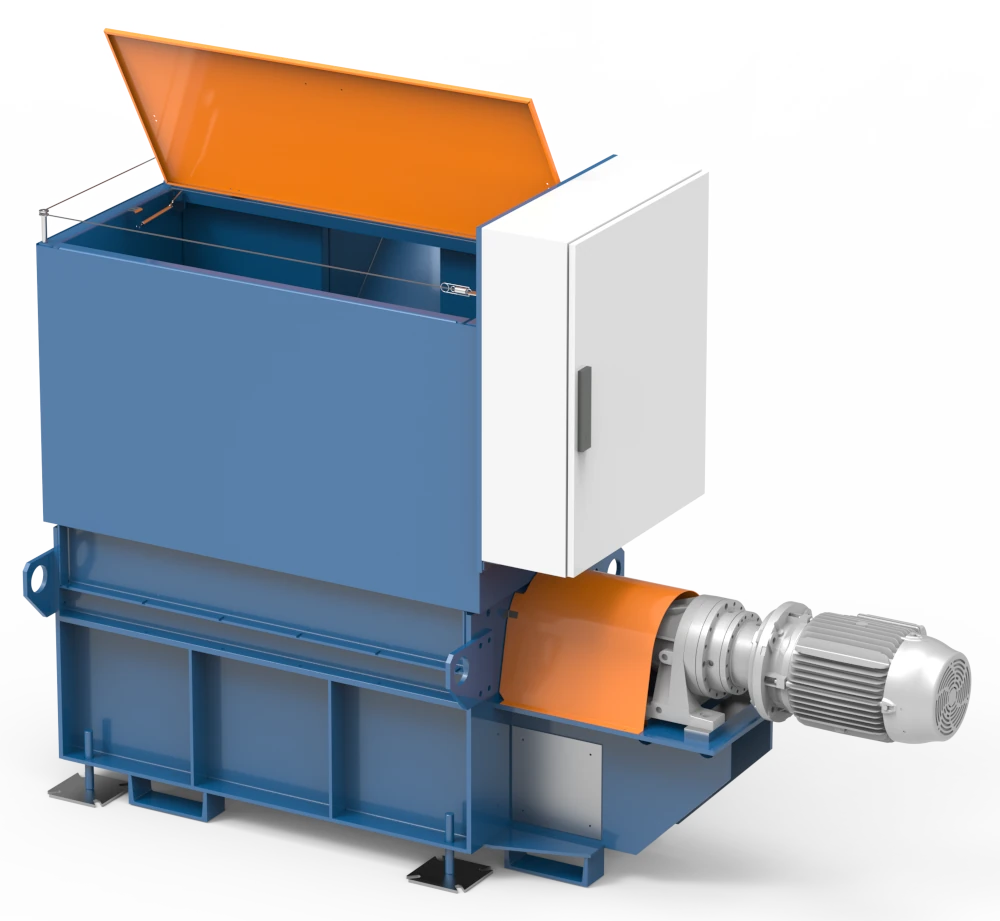

PREBREAKER / GRINDER

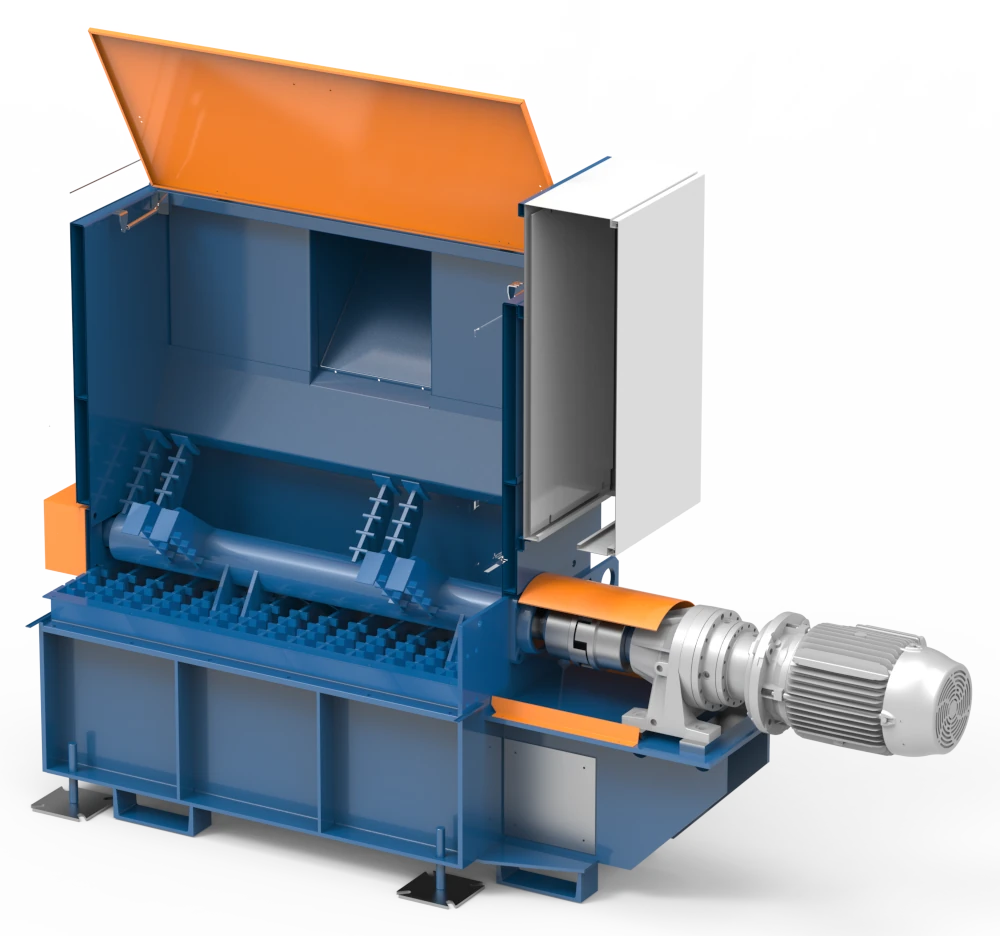

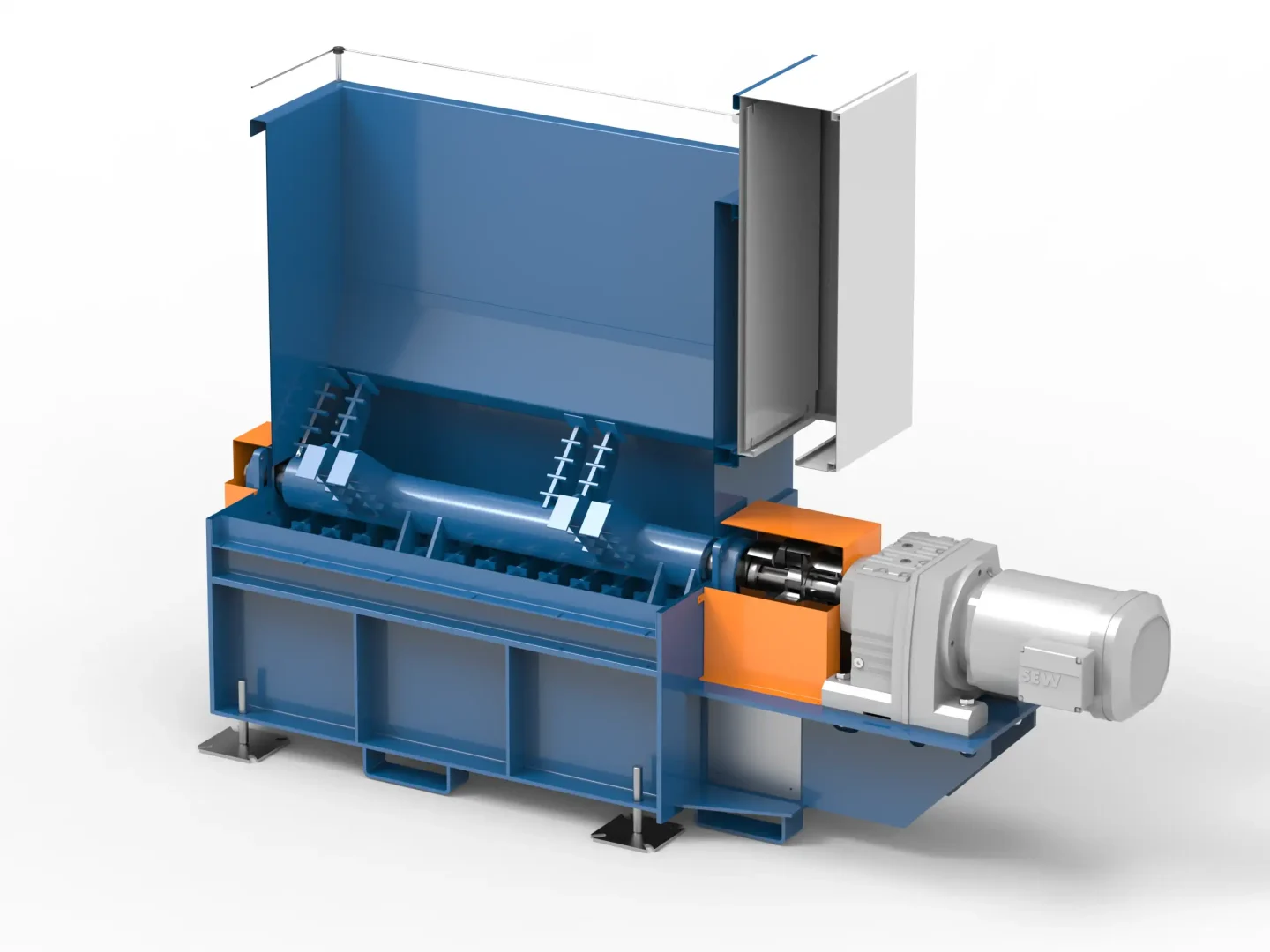

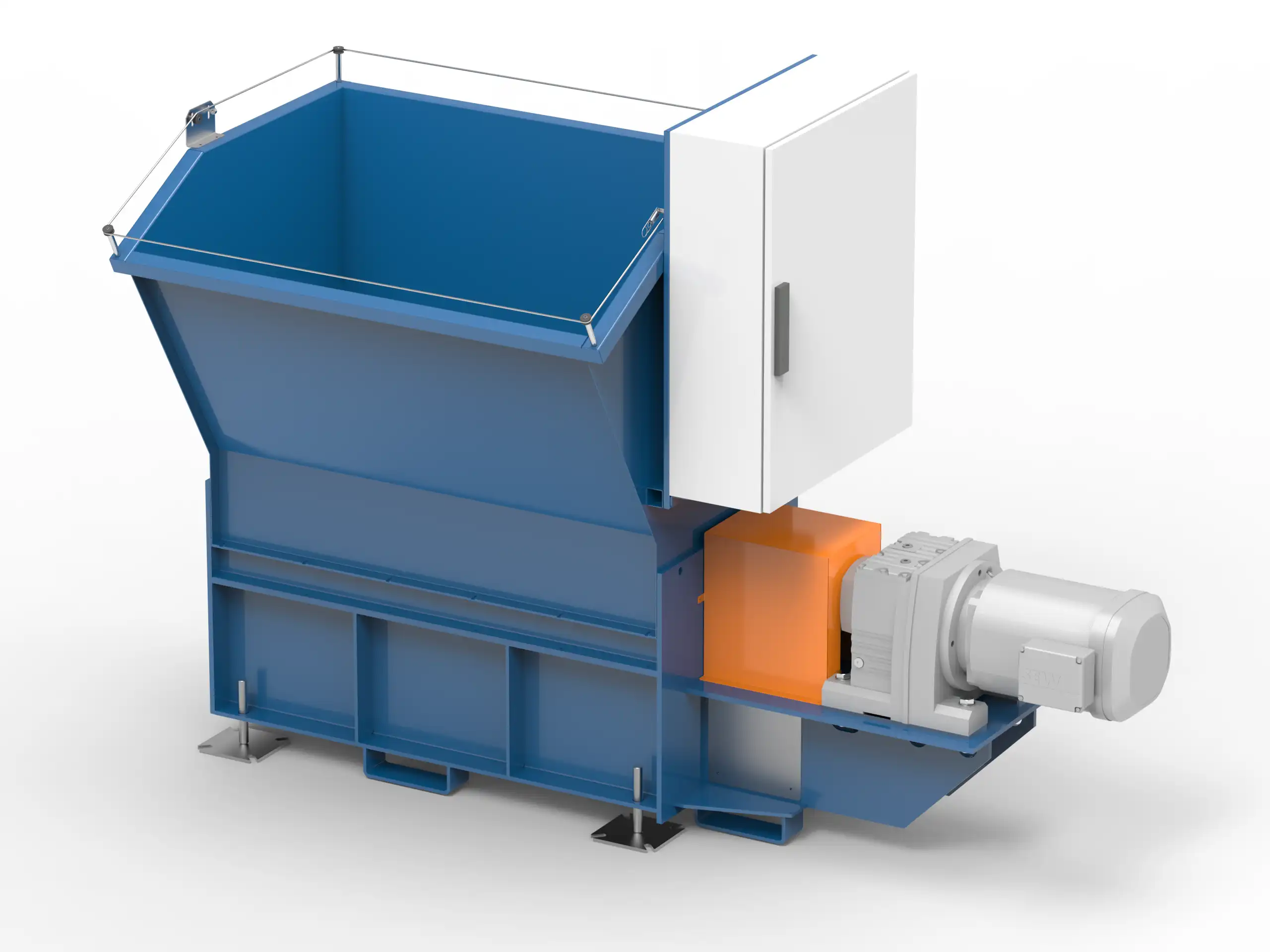

VBM 1350
Designed specifically for the granulation of EPS scrap sheets and parts down to a reusable bead size.
TECHNICAL SPECIFICATIONS
- Capacity: Up to 10 m³/h (depending on material density)
- Slow-moving granulating unit equipped with breaker arms for gentle material processing
- 15 kW motor with gearbox
- Screen Mesh: 10 x10 mm or 20 x 20 mm
- Dosing screw for controlled material discharge
OPTIONS
- Cell wheel for coarse regrind dosing

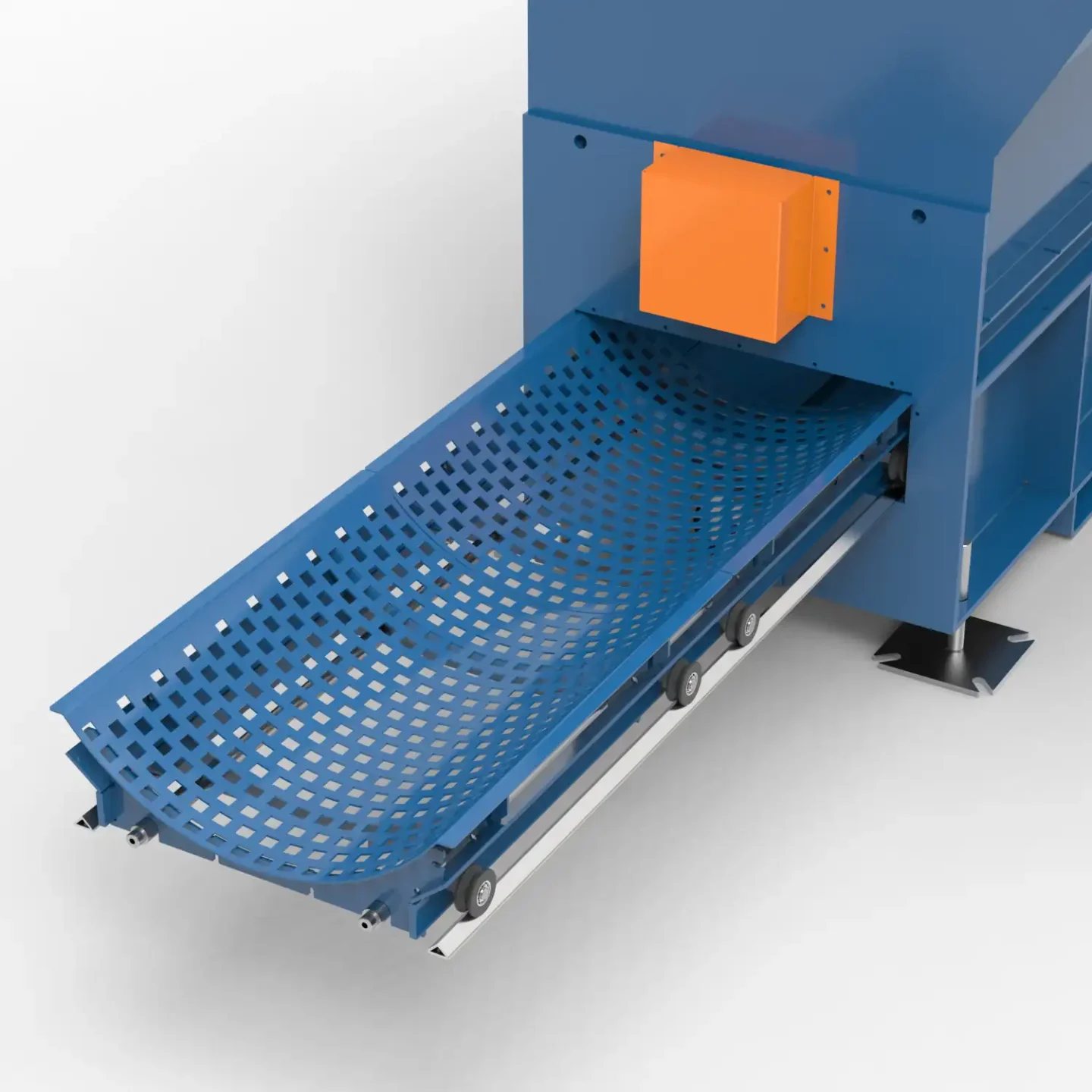

- Exchangeable screen system
ADVANTAGES
- Reduced need for cleaning, resulting in less machine downtime
- Produces less dust, ensuring a higher quality final product

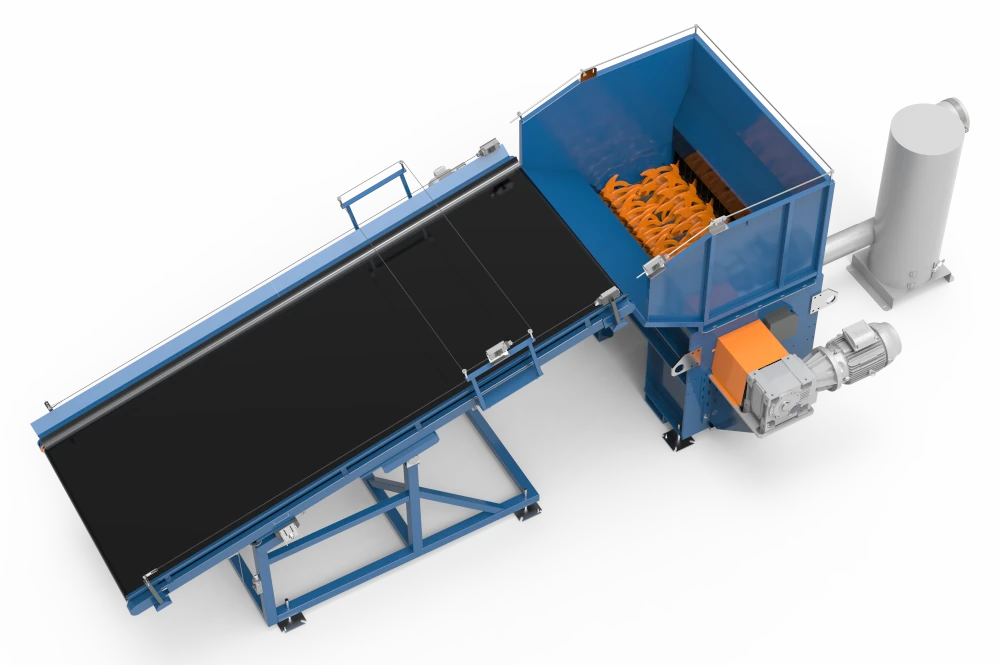

Prebreaker VBM 1500
Prebreaker built for higher capacity and robust material processing.
TECHNICAL SPECIFICATIONS
- Capacity: Up to 30 m³/h (depending on material density and feed rate)
- Slow-moving granulating unit equipped with hooks
- 30 kW motor with gearbox
- Screen Mesh: 40 x 40 mm
OPTIONS
- Belt for material loading
- Heavy particle separator
- Breaker blower
- Sound absorption box
- De-duster
DEDUSTING SYSTEM
Standard EPS production generates dust and fines that can quickly accumulate without proper preventative measures, that is why efficient dust management is crucial for process stability and a clean working environment.
ADVANTAGES
- Slow-speed granulators, such as the VBM 1350, are engineered to produce minimal dust.

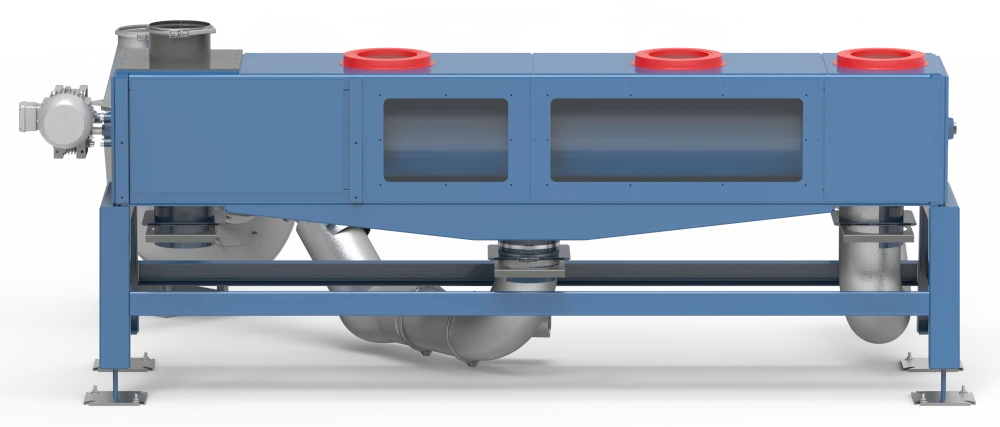

- When combined with a dust extraction system VDD 1300, the overall dust load can be reduced to an absolute minimum.
- Lowering dust levels directly minimizes machine downtime required for cleaning.
- A clean operation optimizes overall process stability and plant efficiency.
SPEZIALIZED COMPONENTS

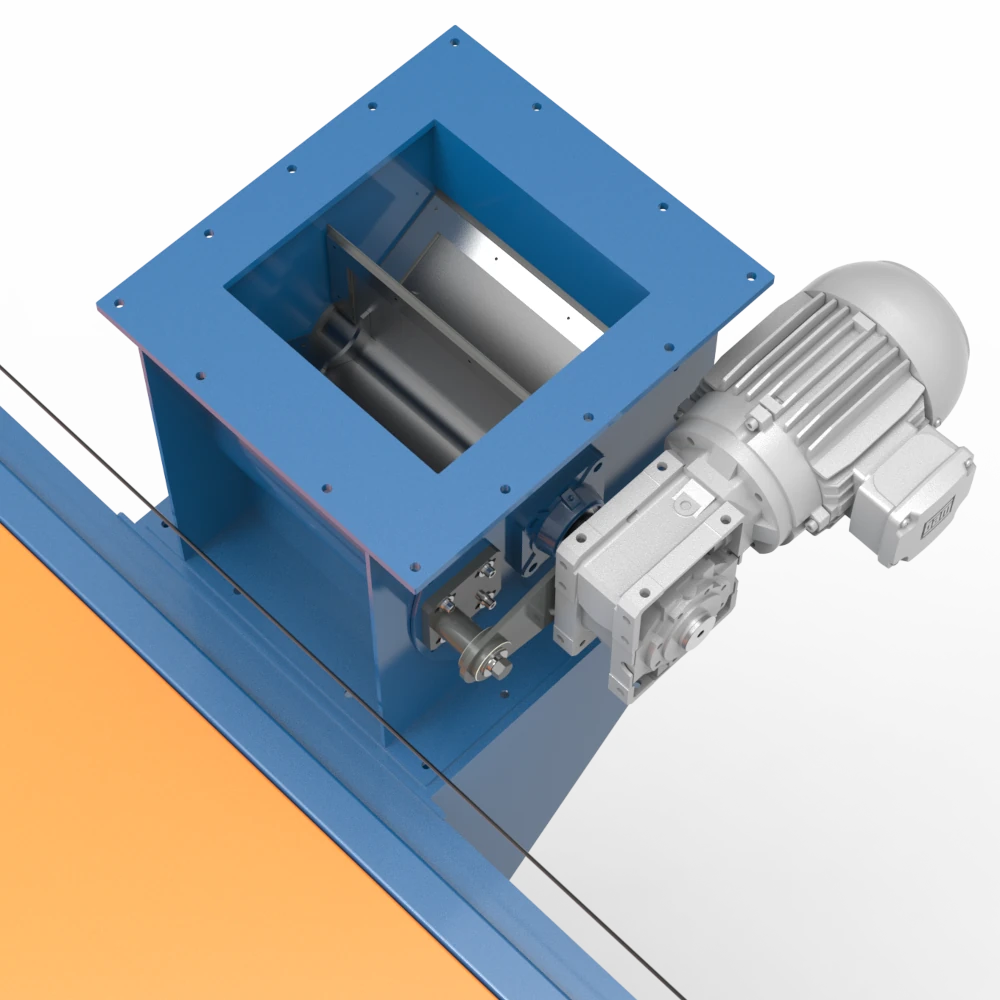

- Cell Wheel – air lock

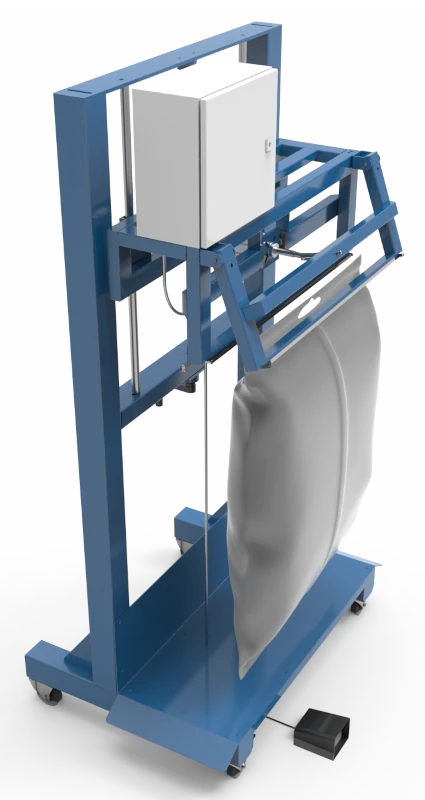

- Bag Closing Welding Machine

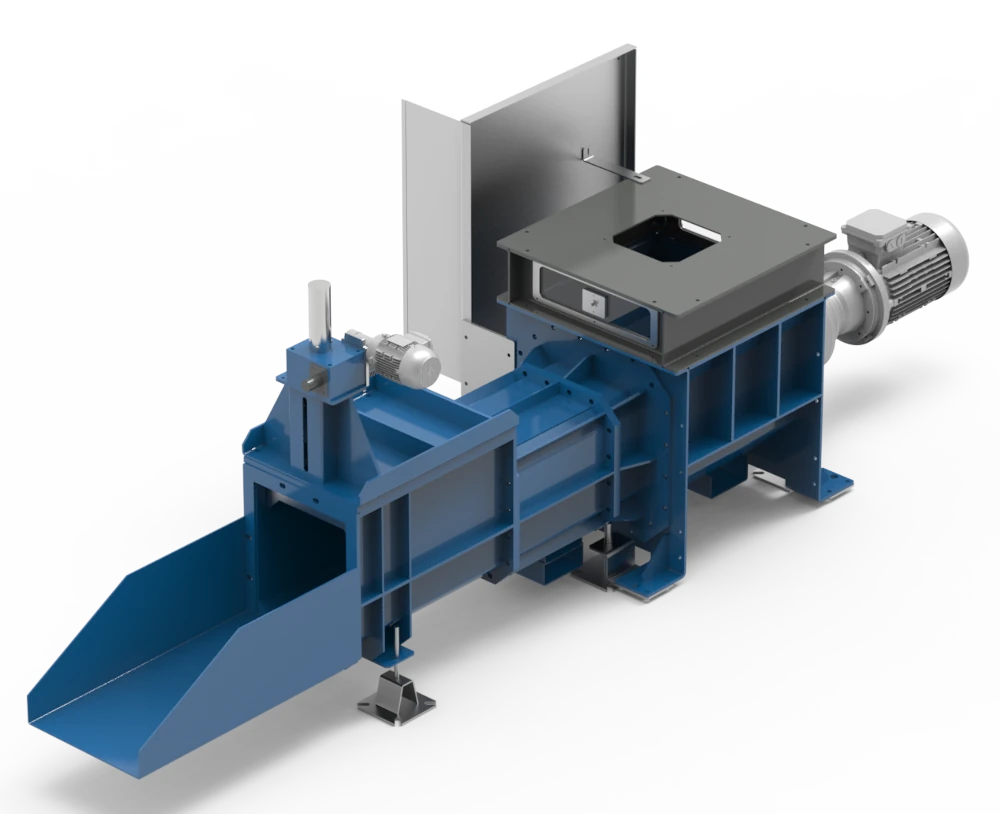

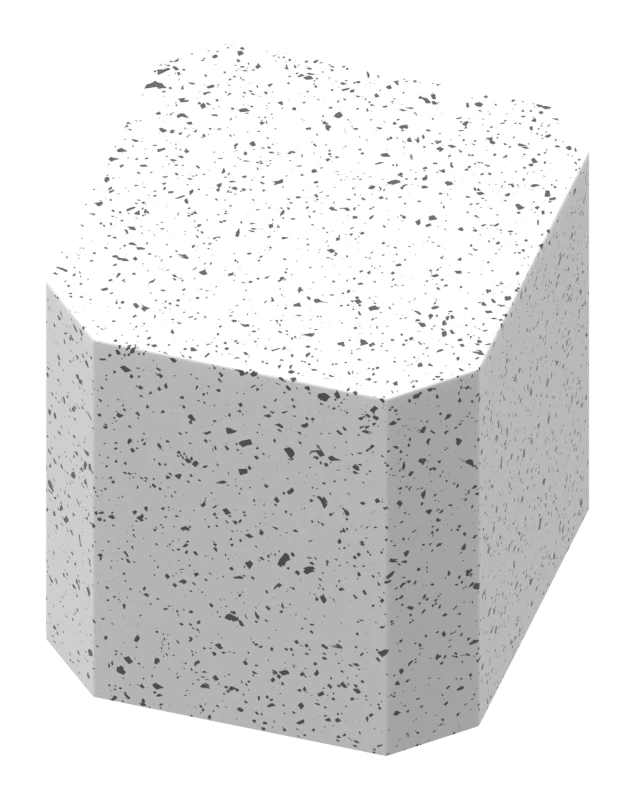

- Dust Compactor (Model HDC 400)

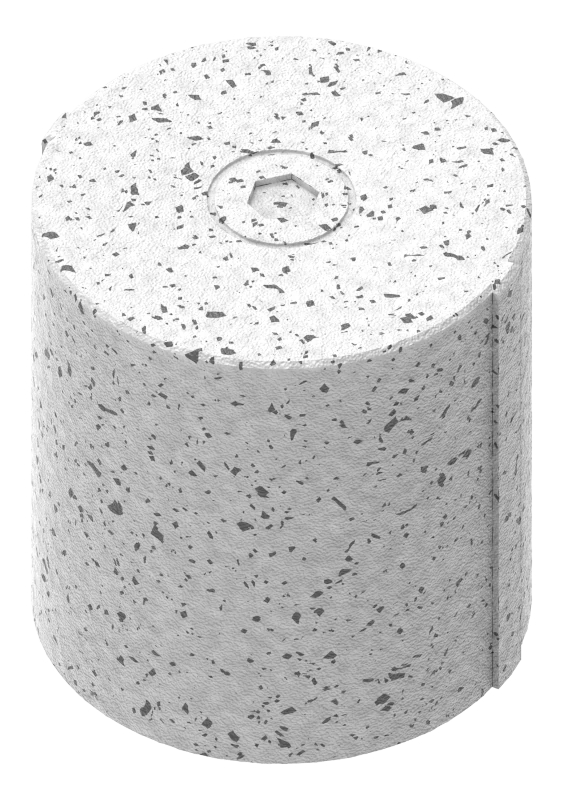

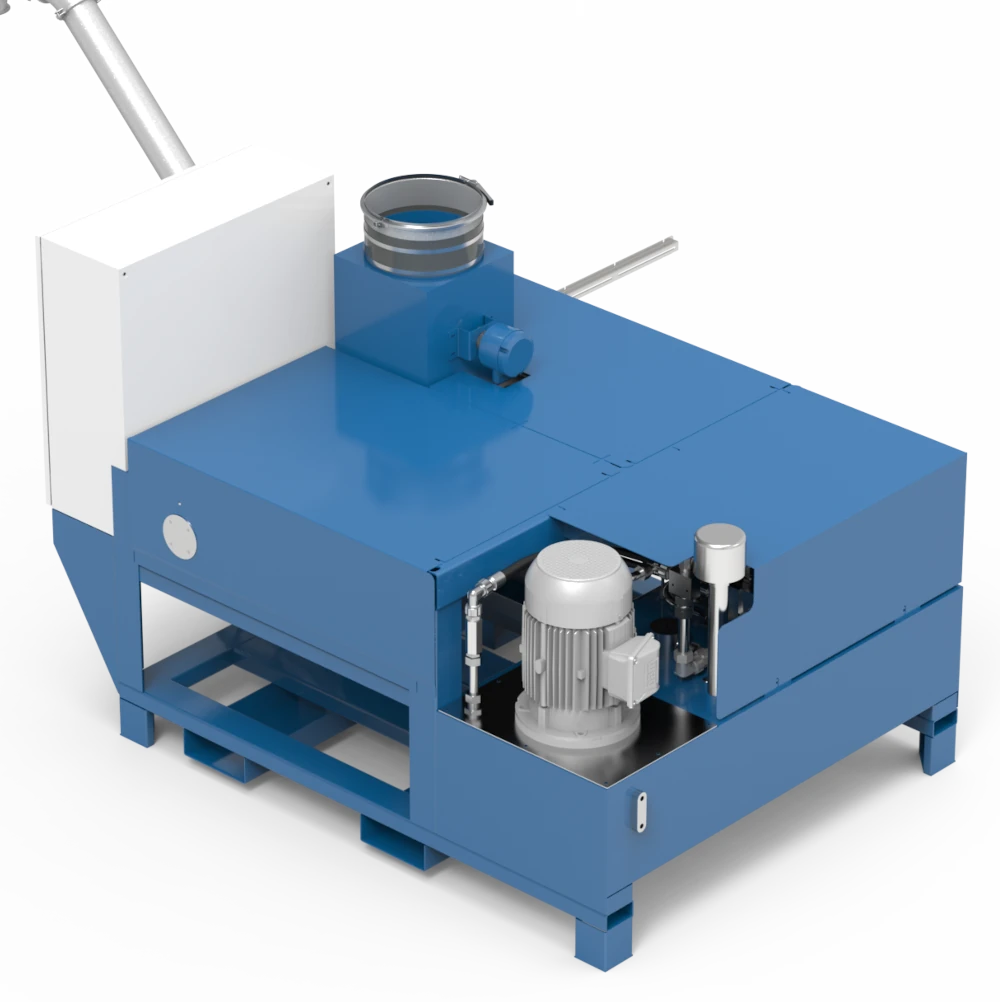

- Dust Compactor (Model HDC 120)

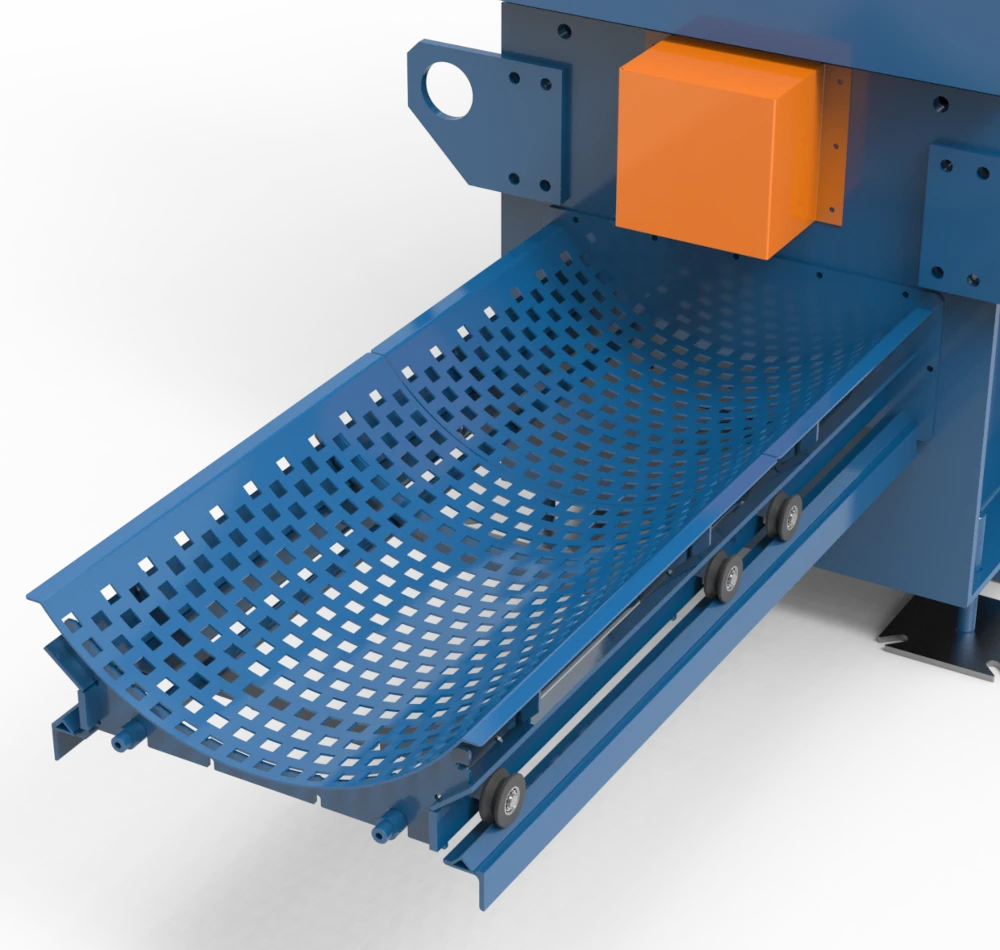

- Exchangeable Screen (for VBM 1350)

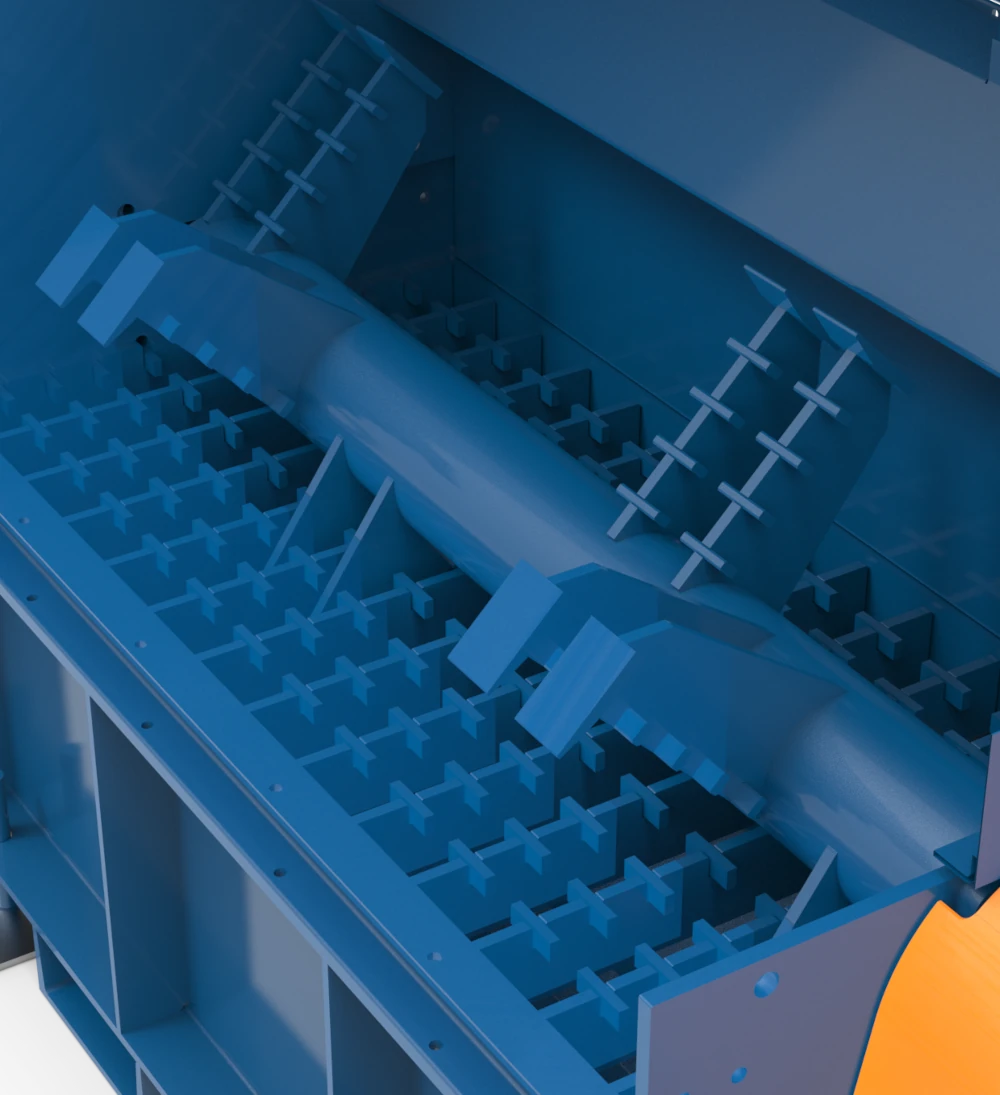

- Slow-Moving Breaker Arms (for VBM 1350)

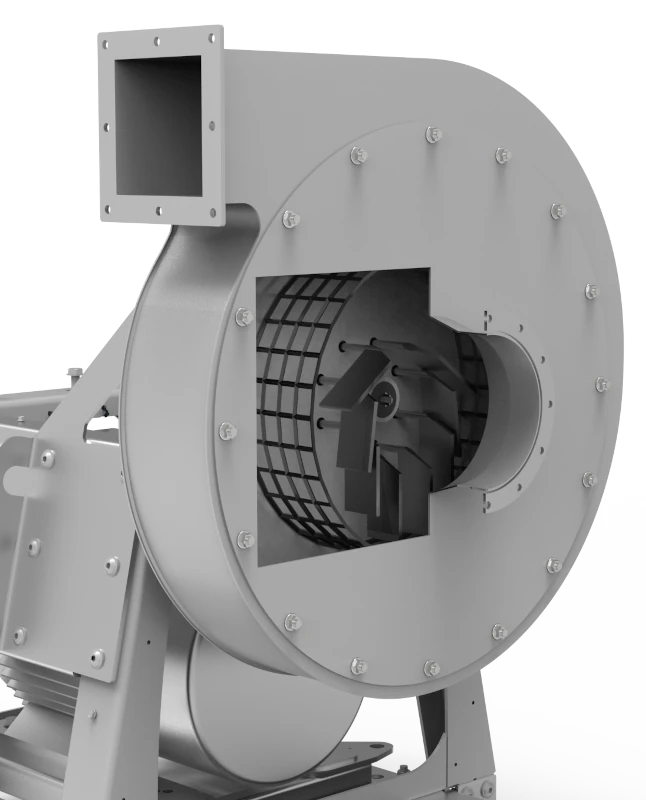

- Breaker Blower

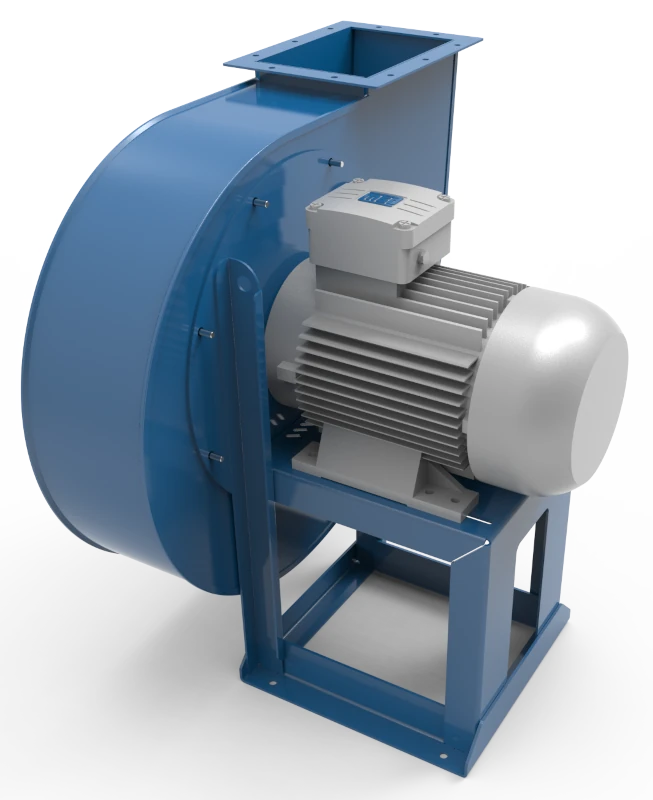

- Transport Blower
